Atlas Copco

8436613015 ETV STR31-15-10 - ServAid - Atlas Copco

Part number 8436613015

CategoryTools

In Stock · Ready to Ship

Ships within 3 business days

$7,999.00
$7,999.00
Shipping calculated at checkout.

Product Details

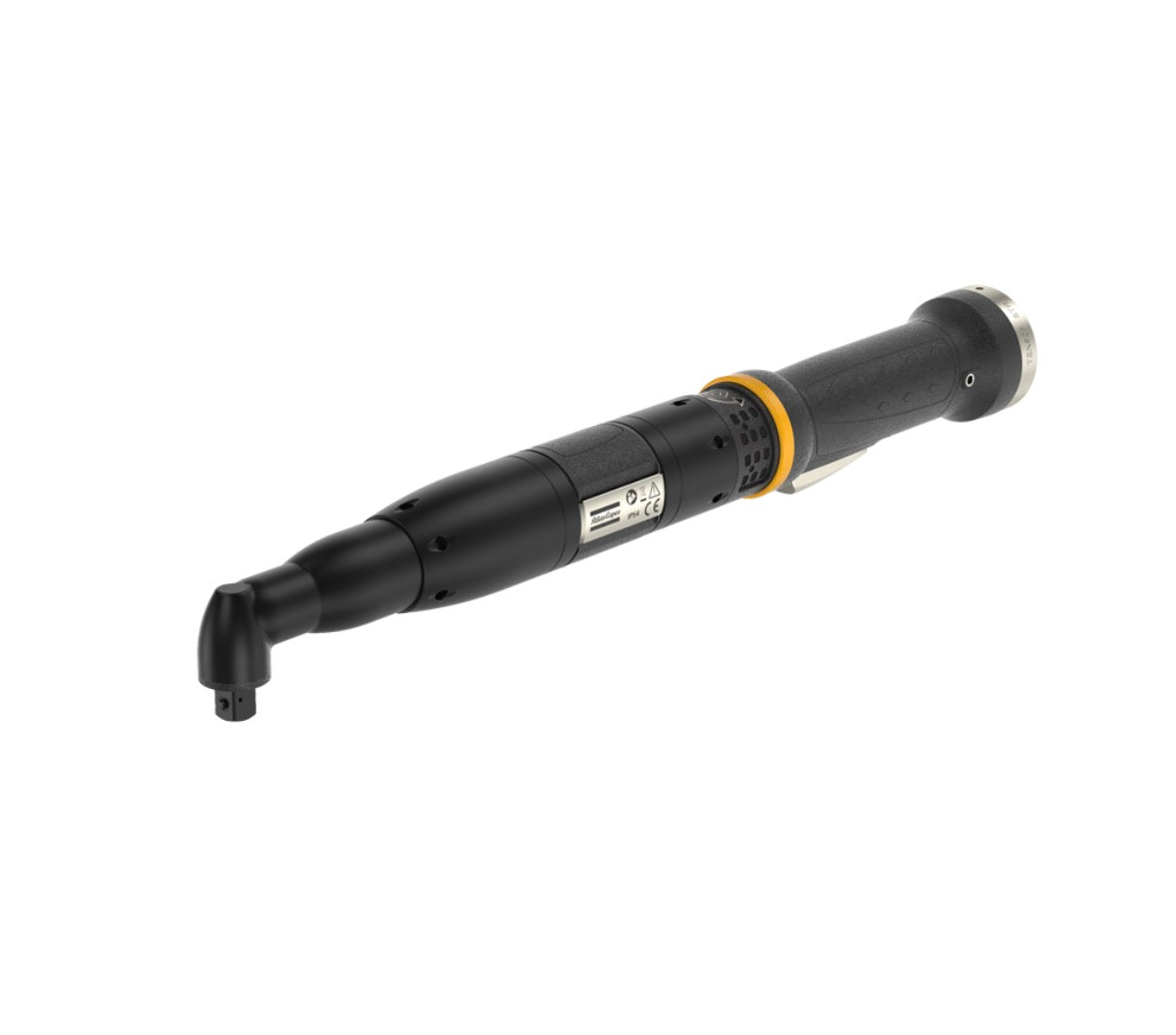

Take productivity to new levels with the revolutionary Angle Cable Nutrunner Tensor STR. The Tensor STR offers a wide range of options to improve the operator experience and increase the efficiency of your assembly line, which includes faster tightening speeds and exceptional ergonomics. The Tensor STR connects directly to the Power Focus 8 controller for a complete error-proofing solution in safety-critical applications.Country of origin is SE.

Technical Specifications

ImperialMetric
Certifications, standards & directives
CCC certified
No
CQC certified
No
EAC certified
Yes
EU Legislation
2006/42/EC (MD)||2011/65/EU (RoHS)||2014/30/EU (EMC)||2015/863/EU (RoHS amendment)
EU Standard
EN 61000-6-2:2019||EN 61000-6-4:2019||EN 62841-1:2015 + AC:2015 + A11:2022||EN 62841-2-2:2014+AC:2015||EN ISO 12100:2010
KC certified
Yes
KC ID
R-REI-50A-ETVSTR31
UK Regulations
S.I. 2008/1597||S.I. 2012/3032||S.I. 2016/1091
UK Standard
BS EN 62841-1:2015 + AC:2015 + A11:2022||BS EN 62841-2-2:2014||BS EN IEC 61000-6-2:2019||BS EN IEC 61000-6-4:2019||BS EN ISO 12100:2010
WEEE
5 - Small equipment <50cm
Noise & vibrations
Sound pressure
<70 dB(A)
Sound standard
ISO15744
Vibration standard
ISO28927-2
Vibration value
<2.5 m/s²
Design & Functions
Model type
Angle
Output type
Square, Male
Shut-off system
Transducer
Tool family
STR
Dimension & weight
CS distance
11 mm
Height
42 mm
Length
381 mm
Output size
3/8"
Weight
2.4 lb
Speed
Speed range max
975 r/min
Power
Motor power
1500 W
Motor voltage type
3 a.c.
Motor voltage
200 V
Torque
Torque range max
10 ft-lb
Torque range min
3.6 ft-lb
Torque scatter 3s
≤ 5 %

Benefits

Full traceability
Unsurpassed operator comfort
Tightening without operator influence
Reduced total cost of ownership
Reduced operator training time

Features

+/-5% over three sigma accuracy
Built-in Transducer
Patented TurboTight strategy
Built in gyroscope and TrueAngle technology
Robust IP54 class rated
Reduced weight
Configurable LEDs
Integrated speaker and vibration

In The Box*

ETV STR31-15-10 product photo

ETV STR31-15-10



Specifications
BrandAtlas Copco
Part number8436613015
CategoryTools
Shipping weight1.5 kg
