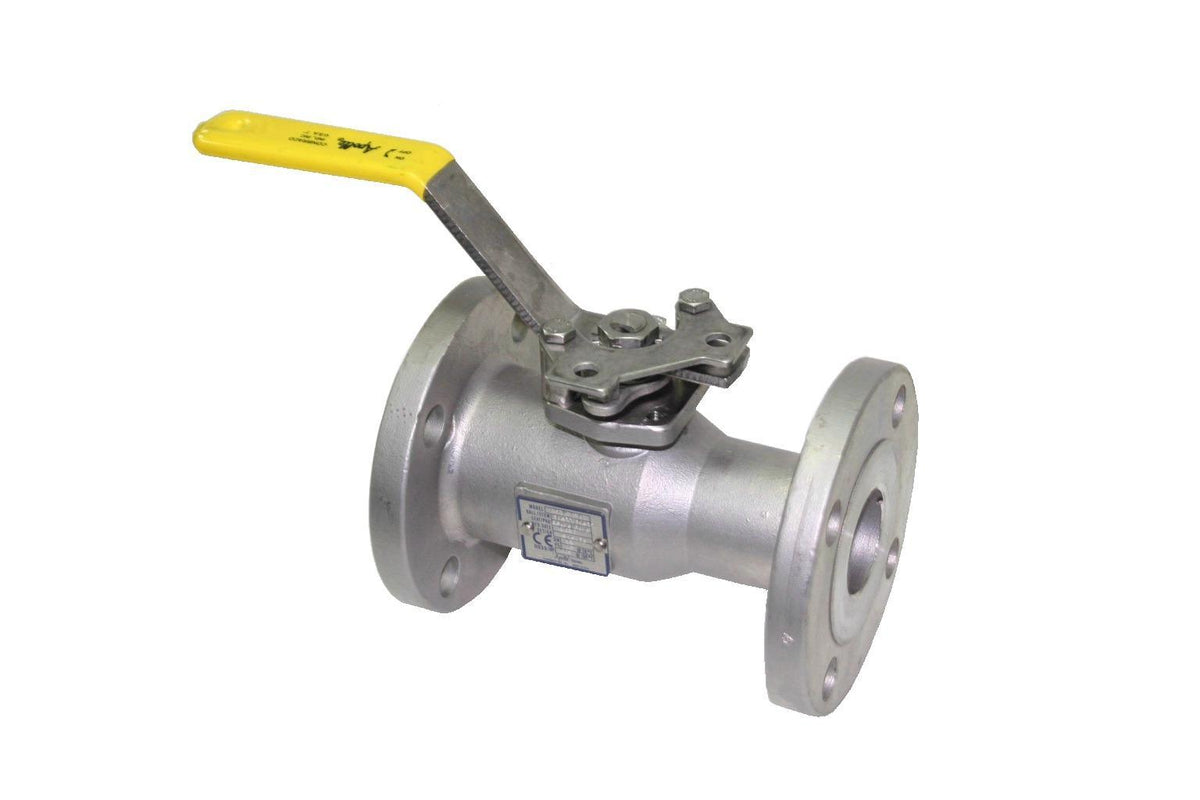

Apollo™ 87A10A01 87A-100 Ball Valve, 4 in Nominal, Flanged End Style, 150 lb, Stainless Steel Body, Standard Port, PTFE Softgoods, Domestic
Product Details
DESCRIPTION
Apollo™ 87A10A01, Ball Valve, Series: 87A-100, 4 in Nominal, Flanged End Style, 150 psi Pressure, 150 lb Pressure Class, Standard Port, Lever Operated Actuator, 316 Stainless Steel Ball, 9 in Inlet to Outlet Length, 8.8 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 73 lbs
Nominal Size: 4 in
End Style: ANSI 150 Flange
Pressure Class: 150 lb
Pressure Rating: 150 psi
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 9 in
Manufacturer Name: Apollo Conbraco
Series: 87A-100
Top to Inlet Center: 8.8 in
Trim Material: 316 Stainless Steel/PTFE
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 608 | ASME B16.33/B16.38 | ASME Class 150RF | ASTM A276 | ASTM A193 B8 Class 1 | PROP65: Cancer and Reproductive Harm
Item Features
- 2-position locking device (valves 6 in full port, 8 in standard port and smaller)
- Chevron style adjustable stem seal
- Slot vented ball for thermal expansion
- Anti-static grounded ball and stem
- Blow-out proof stem design
- Cast brass for bleed/drain port
- Vacuum service to 29 in Hg
- 316 stainless steel gland plate/handle adapter/stop screw
- 18-8 stainless steel adapter screw
- 302 or 304 stainless steel lock plate/lock washer
- Stainless steel grounding spring
Specifications
| Brand | Apollo |
|---|---|
| Part number | 87A-10A-01 |
| UPC / Barcode | 670750907449 |
| Category | Ball Valve |
| Shipping weight | 73.0 lb |
| Material | Stainless steel |
Need a datasheet, cross-reference, or bulk pricing? Request a quote
Shipping & Returns
-
Ships in One Business Days
In-stock orders are packed and handed to the carrier within 3 business days. Tracking is emailed as soon as it ships.
-
30 Business Day Returns
Unused items in original packaging can be returned within 30 business days of delivery.
-
LTL Delivery
Large or heavy items ship via LTL freight carrier. Lift-gate delivery is included at no extra charge.
Apollo™ 87A10A01 87A-100 Ball Valve, 4 in Nominal, Flanged End Style, 150 lb, Stainless Steel Body, Standard Port, PTFE Softgoods, Domestic
$2,745.49 SKU: 87A-10A-01
