ABB

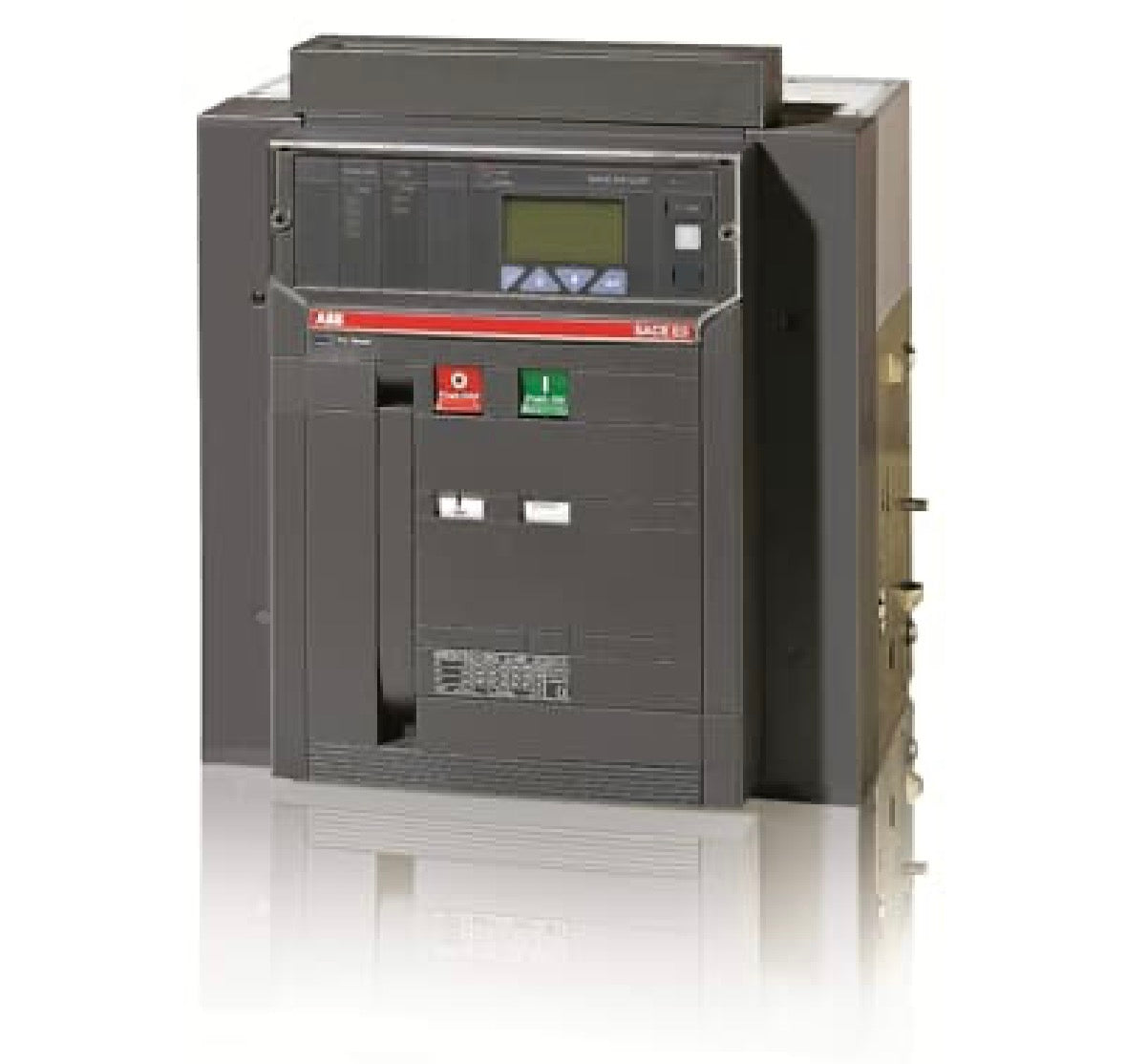

E4.2H-A/E 3600 Ekip Dip LSI 3p F no Term

CategoryCircuit Breaker

In Stock · Ready to Ship

Ships within 3 business days

$22,888.42
$22,888.42
Shipping calculated at checkout.
Product Type: E4.2H-A/E 3600 Ekip Dip LSI 3p F no

Product Details
Extended Product Type:
E4.2H-A/E 3600 Ekip Dip LSI 3p F no Term
Product ID:
1SDA113806R1
EAN:
8056221043397
Catalog Description:
E4.2H-A/E 3600 Ekip Dip LSI 3p F no Term
Long Description:
C.BREAKER SACE EMAX2 E4.2H-A/E 3600 UL FIXED THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 3600 AND WITHOUT TERMINALS FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
8056221043397
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
384 mm
Product Net Height:
371 mm
Product Net Depth / Length:
270 mm
Product Net Weight:
56 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
610 mm
Package Level 1 Depth / Length:
615 mm
Package Level 1 Gross Weight:
79 kg
Package Level 1 EAN:
8056221043397

Additional Information

Product Main Type:
SACE Emax 2
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Version:
F

Technical

Current Type:
AC
Electrical Durability:
10 cycles per hour
Mechanical Durability:
20000 cycle
60 cycles per hour
Number of Poles:
3P
Power Loss:
578 W
Rated Current (In):
3600 A
Rated Insulation Voltage (Ui):
AC 1000 V
Rated Operational Voltage:
730 V
635 V
Rated Uninterrupted Current (Iu):
3600 A
Rated Voltage (Ur):
730 V
635 V
Release:
Ekip Dip LSI
Release Type:
EL
Short-Circuit Performance Level:
H
Standards:
UL
Sub-type:
E4.2

Certificates and Declarations

Declaration of Conformity - CE:
EU Data Act Compliance Declaration:
Instructions and Manuals:

External Classifications and Standards

WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
eClass:
V11.1 : 27370409

Specifications
BrandABB
CategoryCircuit Breaker

Need a datasheet, cross-reference, or bulk pricing? Request a quote
