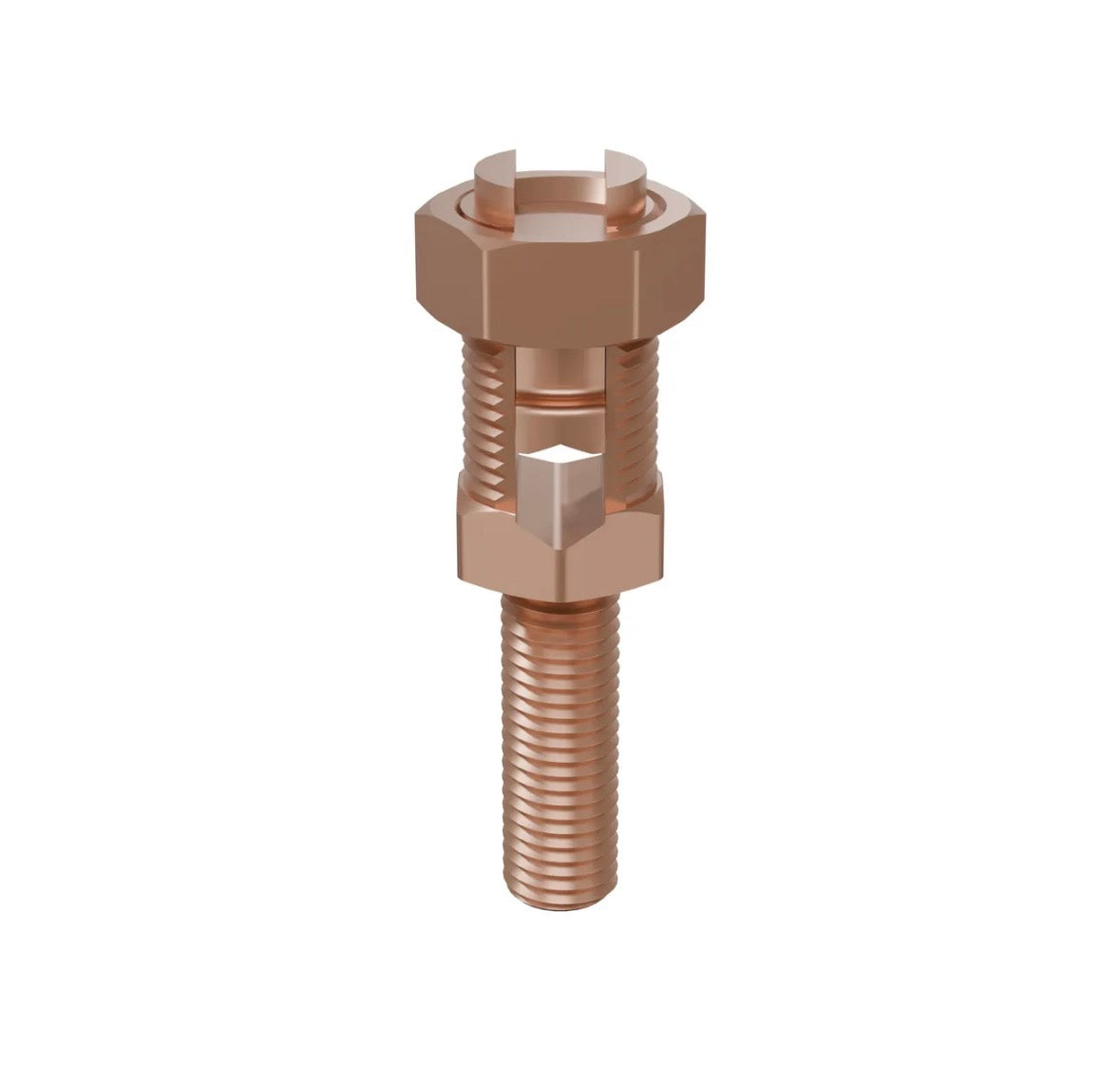

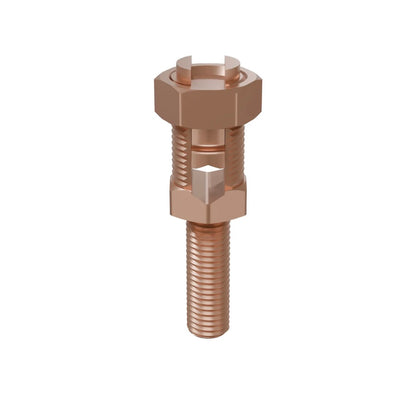

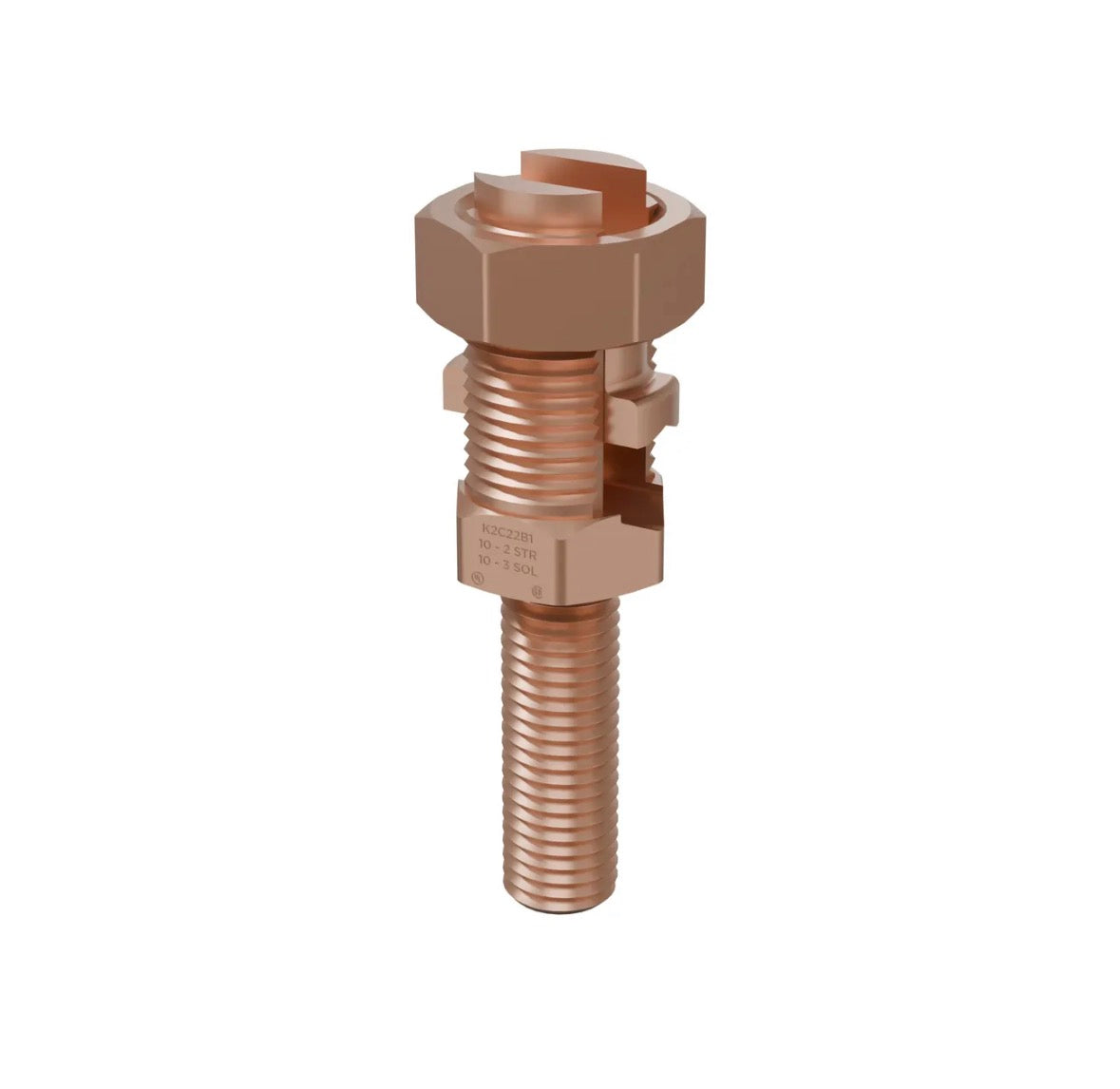

K2C22B1, SERVIT POST Mechanical Connector, 2 Cables to Flat
Product Details
Mechanical Grounding Connector, 2 Cables to Flat, 10 - 3 AWG (Str) / 10 - 2 AWG (Sol).
- SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
- Also used to tap 1 or 2 cables from bus bar
- 1-Wrench installation
For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
Catalog Number
K2C22B1
Material
Bronze Alloy, Leaded
Plated
No
Plating Type
Unplated
Product Family
Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Bar/Flat
Product Type
Mechanical
Stud Installation Torque inch pounds
280 LBS/in
Sub Brand
SERVIT POST
Trade Name
SERVIT POST™
Type
KC and K2C Series
UPC
781810257159
UPC 14 Digit GTIN
Dimensions
Dimension - B Length fraction
31/32 in
Dimension - B Length inch
0.96 in
Dimension - Body Width inch
0.62 in
Dimension - Bolt Size fraction
3/8
Dimension - D inch
1.12 in
Dimension - Height fraction
1
Dimension - Height inch
1.00 in
Dimension - Height mm
25.4 mm
Dimension - L Length Overall mm
53.8 mm
Dimension - Length Overall inch
2.12 in
Dimension - Nut Width inch
0.75 in
Dimension - P inch
0.26 in
Dimension - Threads per inch
16
Specifications
| Brand | Burndy |
|---|---|
| Category | Electrical |
| Shipping weight | 0.75 lb |
