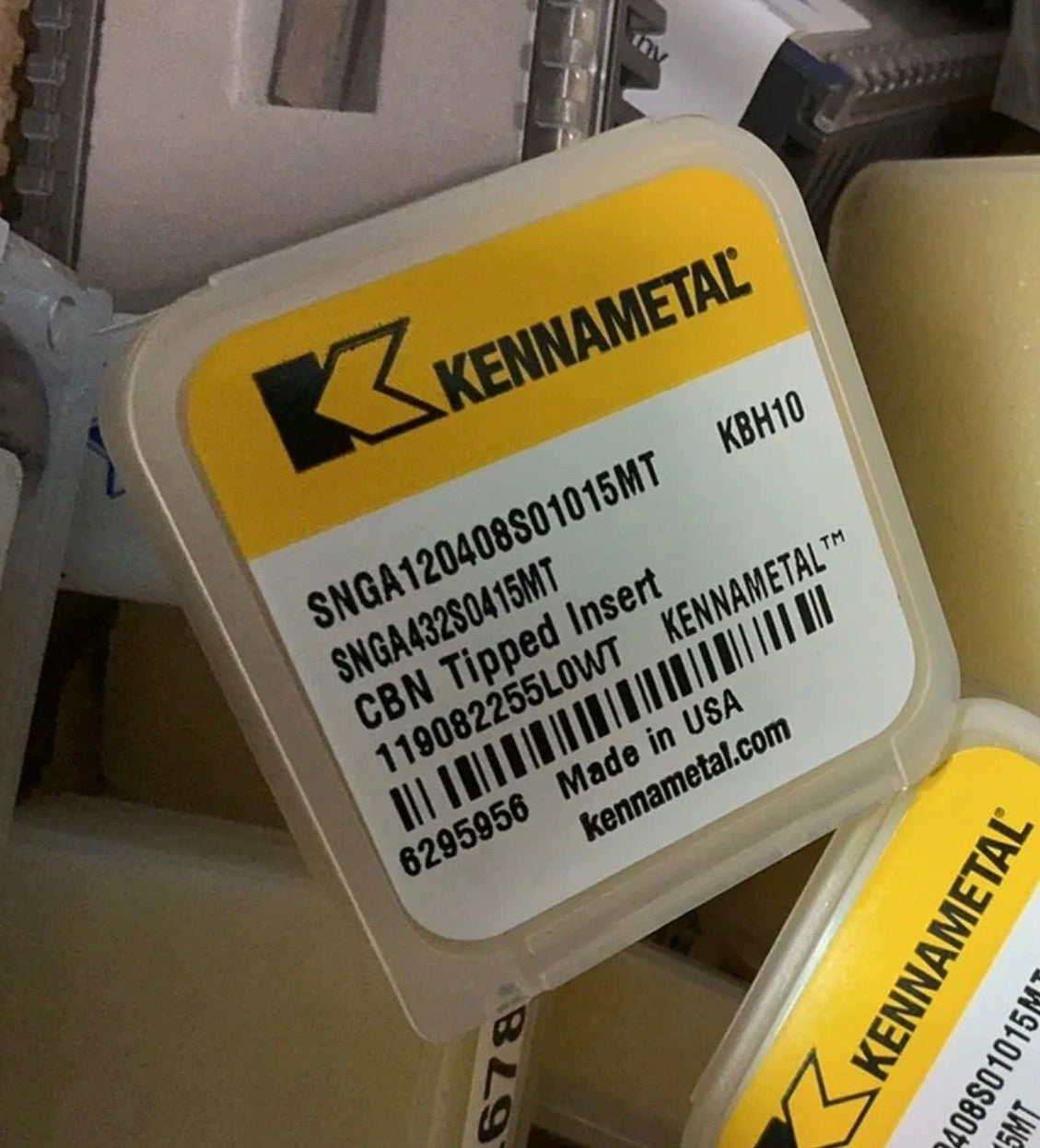

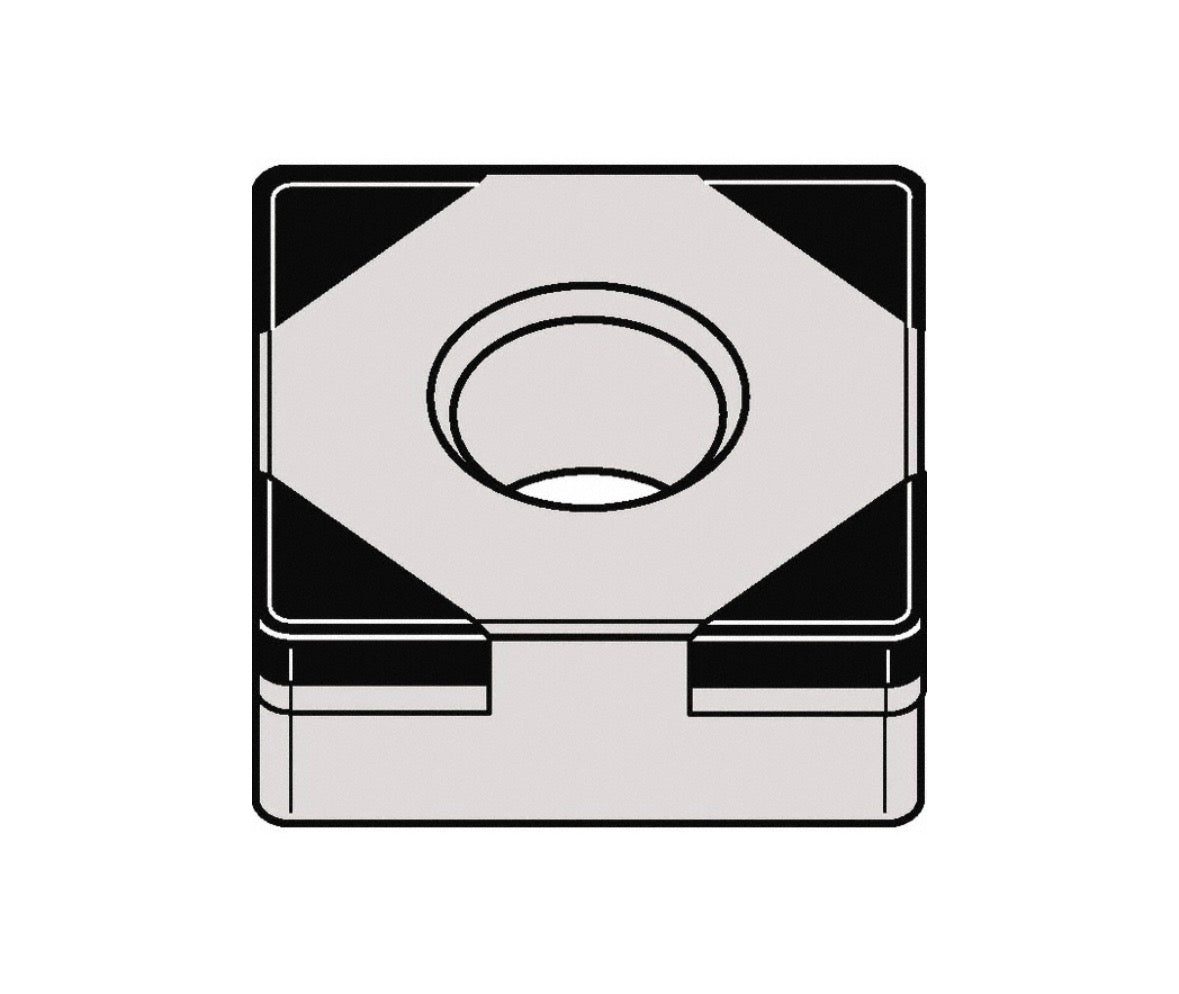

KennametalTurning Insert: SNGA432S0415MT KBH10, PCBN Tipped Inserts

CategoryTools

In Stock · Ready to Ship

Ships within 3 business days

$197.00

Shipping calculated at checkout.

Catalog Number 6295956

Iso Code SNGA120408S01015MT

Industry Standard Number SNGA432S0415MT

Product Details

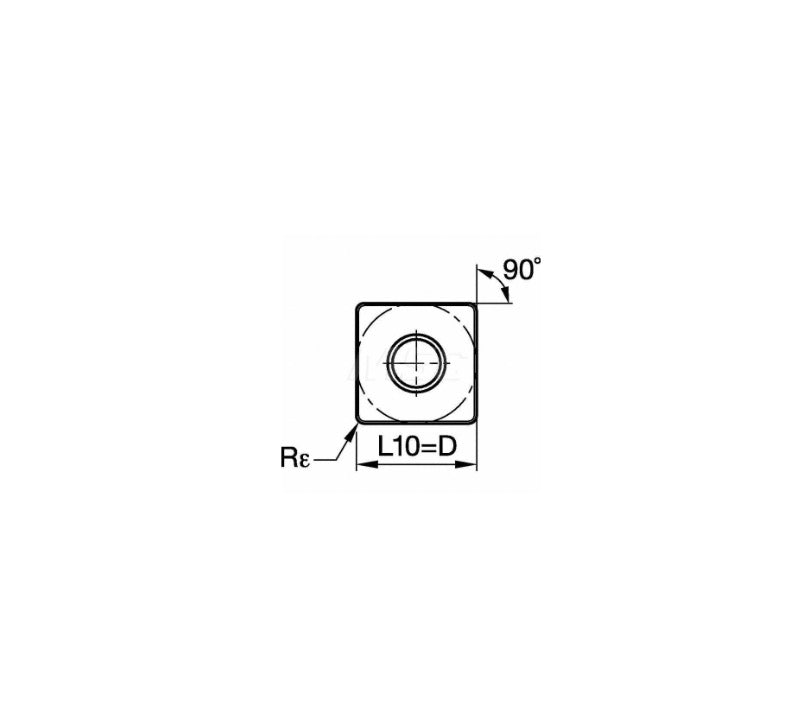

KBH10, Neutral, 1/2" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 90.00 deg S - Square, Series KENLOC

Mfr# 6295956

Insert Style: SNGA
ANSI Size Code: 432
ISO Size Code: 120408
Insert Shape: S - Square
Included Angle: 90.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Insert Material: PCBN
Manufacturer Grade: KBH10
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Insert Hand: Neutral
Series: KENLOC
Chip Breaker Operation: Flat Top
Side Clearance: Negative
Number Of Cutting Edges: 4
Hole Diameter (Decimal Inch): 0.2030
Maximum Depth of Cut (Decimal Inch): 0.1665
ANSI Insert Code: SNGA432
ISO Insert Code: SNGA120408
Insert Holding Method: Pin; Clamp
Width (Inch): 1/2
Clearance Code: N
Tolerance Code: G
Coating Process: Uncoated
Rake: Negative
Insert Length (Decimal Inch): 0.5000
Insert Length (Inch): 1/2
Primary Workpiece Material: Hard Material
Primary Workpiece Material Code: H
Iso Code: SNGA120408S01015MT
Standards: ISO; ANSI
Manufacturers Catalog Number: 6295956
Material Grade: H05; H15
Single or Multi Tipped: Multi Tipped
Proprietary Coating Designation: Uncoated
Coating Classification: Uncoated
Chip Breaker: Flat Top
Rake Angle: 0
Cutting Edge Style: Honed; Chamfered
Industry Standard Number: SNGA432S0415MT
Width (Decimal Inch - 4 Decimals): 0.5000
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
