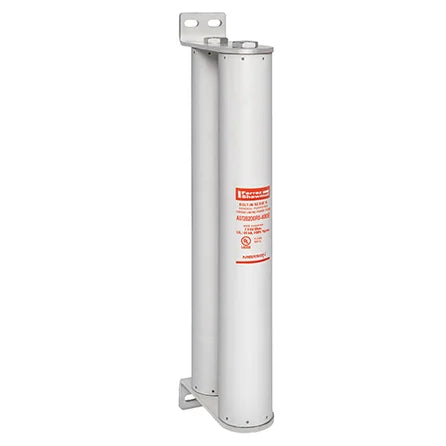

Mersen A072B2D0R0-400E Fuse, Transformer Protection, 7.2kV, E-Rated, Indicating, Bolt-In, 400E A
Product Details
A072B2D0R0-400E
Medium Voltage E-Rated Fuse 7200VAC 400A Ferrule, Series: D0R0 Visual Indicator Amp-Trap®
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They are single, double, triple or quadruple barrels 3 inch diameter (size D) with end mounts designed for bolting directly to equipment bus or terminal pads.
Technical Specifications
| Item number | T075756 |
| Catalogue No | D302GE20C200QF |
| Description | Square Body High-Speed Fuse Protistor® Size 302 gR (gRE) 2000VDC IEC 200A With Striker L Brackets |
| EAN/UPC Code | 3605340011463 |
| Rated voltage DC IEC | 2000 V |
| Ampere Rating | 200 A |
| ROHS Compliant | Yes |
| AC or DC | DC |
| Speed/Characteristic | gR |
| Fuse Size | 302 |
| Mounting | Bolted |
| Melting I2t | 18740.5 A²s |
| Max. Rated Breaking Capacity DC | 30 kA @ 2000 V, L/R = 14 ms 100 kA @ 1800 V, L/R = 20 ms |
| Design Details | gRE |
| Indication System | Yes |
| Indication System Type | Striker |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | L Brackets |
| Product Width | 3.03 in |
| Product Length | 10.55 in |
| Product Height | 6.81 in |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 4.424 lb |
| Sell Pack Width | 5.04 in |
| Sell Pack Length | 12.36 in |
| Sell Pack Height | 3.35 in |
| Product group | High-Speed and Semiconductor protection fuses |
| Body/Insulating Material | Ceramic |
| Product Weight | 4.424 lb |
| Power Dissipation at Intermediate Current Value | 40,8 W @ 0,8 In W |
| Power Dissipation at Rated Current Value | 80 W |
Specifications
| Brand | Mersen |
|---|---|
| Category | Fuse |
| Shipping weight | 27.3 lb |
