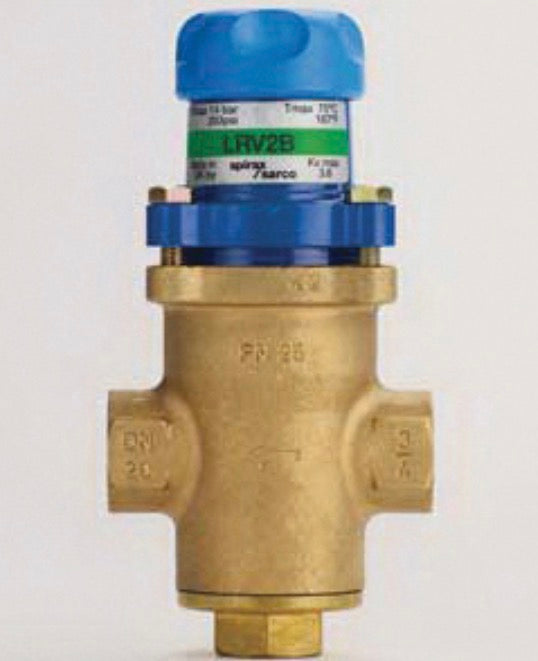

Spirax Sarco 0014361 LRV2S Direct Operated Pressure Regulator With Stainless Steel Bellows, 1/2 in Nominal, FNPT End Style, 5 to 25 psig Pressure
Description
Spirax Sarco Pressure Regulator, Direct Operated, Series: LRV2S, 1/2 in Nominal, NPT End Style, 5 to 25 psig Pressure, Bronze Body, Media: Liquid, Handwheel Actuator, 3.26 in Dimensions
SPECIFICATIONS
Brand: Spirax Sarco
Weight: 3.4 lbs
Nominal Size: 1/2 in
End Style: FNPT
Pressure Rating: 5 to 25 psig
Actuator Type: Handwheel
Body Material: Bronze
Dimensions: 3.26 in
Manufacturer Name: Spirax-Sarco Inc
Media: Liquid
Series: LRV2S
Type: Direct Operated
Country of Origin: US
Standards and Approvals: BS1400 LG2 Body
ITEM FEATURES
- 200 psig maximum upstream pressure
- 550 psig maximum cold hydraulic test
- 2.4 Cv
- Adjustment hand wheel
- Horizontal flow direction
- Gray color coded spring
Vendor: Spirax Sarco
