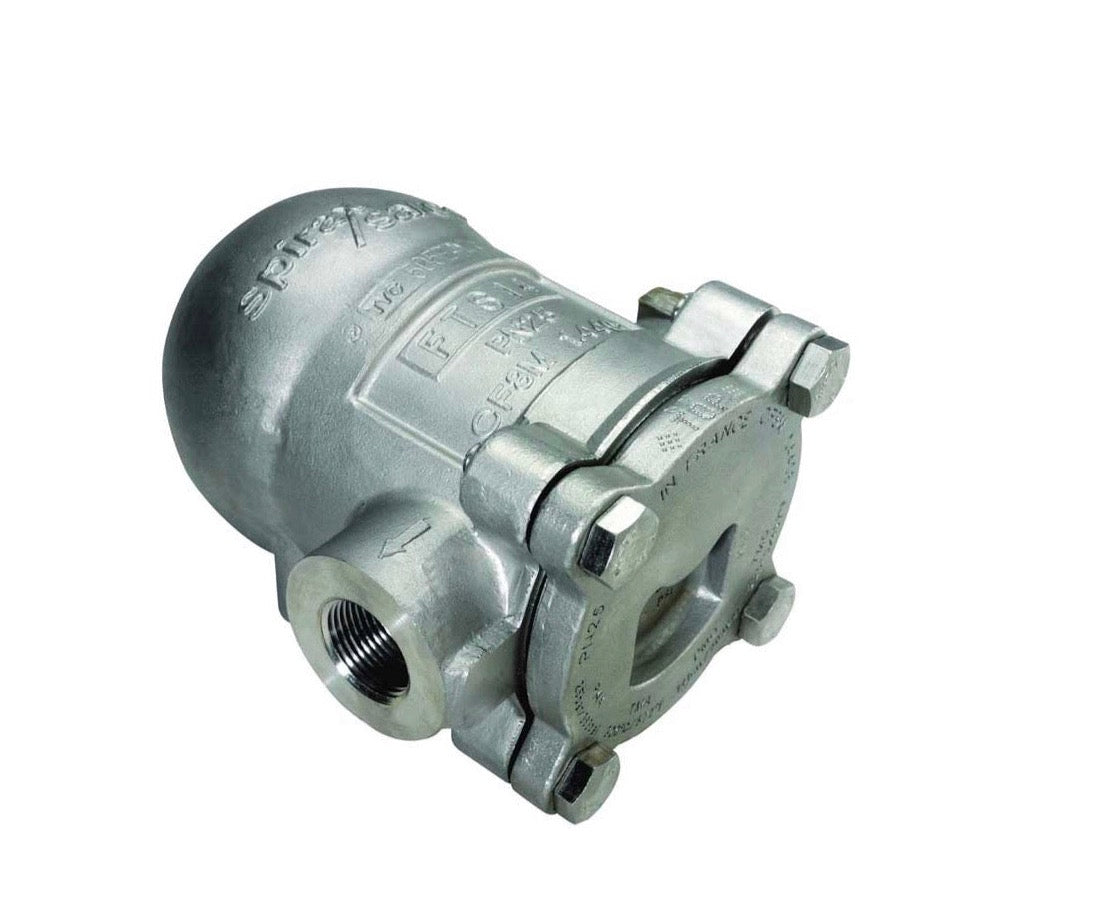

Spirax Sarco 1452151, FTS14-10 Ball Float and Thermostatic Steam Trap, 1/2 in, FNPT, 225 deg C, 150 psig, 316 Austenitic Stainless Steel
Description
Spirax Sarco Ball Float and Thermostatic Steam Trap, 1/2 in Nominal, NPT, 135 mm Length, 150 psig, 316 Austenitic Stainless Steel, 225 deg C, 97 mm H
The FTS14 is an austenitic stainless steel ball float steam trap with an integral automatic air vent. It provides efficient condensate drainage and prompt air removal to ensure process equipment operates to its maximum potential. As standard the FTS14 has horizontal connections with flow from right to left (R-L). However its unique design allows the cover to be simply rotated to provide horizontal left to right (L-R) and vertical up or vertical down configurations.
SPECIFICATIONS
Brand: Spirax Sarco
Weight: 8.3 lbs
Nominal Size: 1/2 in
End Style: FNPT
Max Operating Pressure: 10 bar
Max Allowable Pressure: 25 barg/up to 50 deg C
Max Allowable Temperature: 300 deg C
Material: Stainless Steel
Dimensions: 97 mm H
Length: 135 mm
Manufacturer Name: Spirax-Sarco Inc
Series: FTS14
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME B 1.20.1 | ASTM A351 CF8M/EN 10213-4 Body | European Pressure Equipment Directive 97/23/EC
ITEM FEATURES
- Maximum allowable pressure: 25 barg at 50 deg C
- Maximum allowable temperature: 300 deg C
- Maximum cold hydraulic test pressure: 37.5 barg
- Maximum operating temperature: 225 deg C at 19 barg
- PN25 Body design conditions
Vendor: Spirax Sarco
