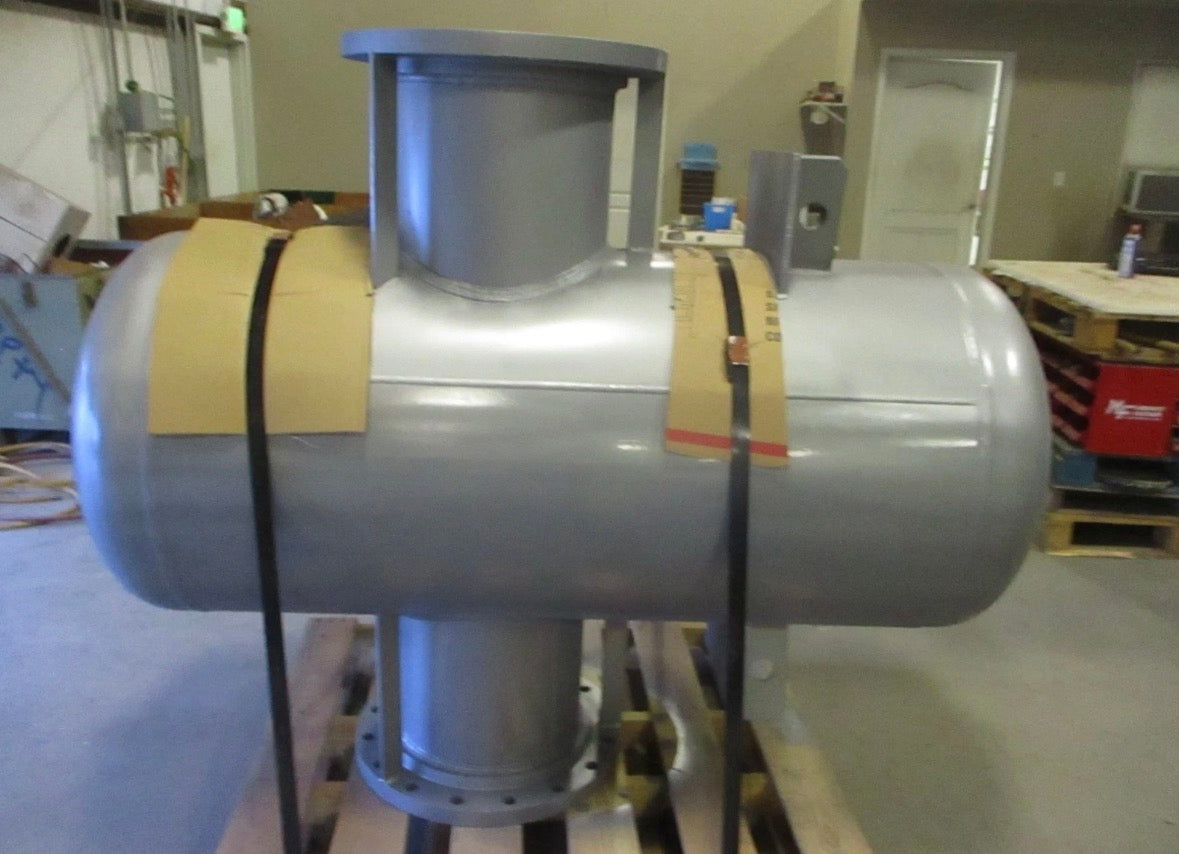

Spirax Sarco 67190, S4A Separator, 4 in, ANSI 150 Flange, 150 psig
Description
Spirax Sarco Separator, 4 in Nominal, ANSI 150 Flange, 150 psig, -20 to 650 deg F, Fabricated Steel Body, 29 in L x 31.2 in H

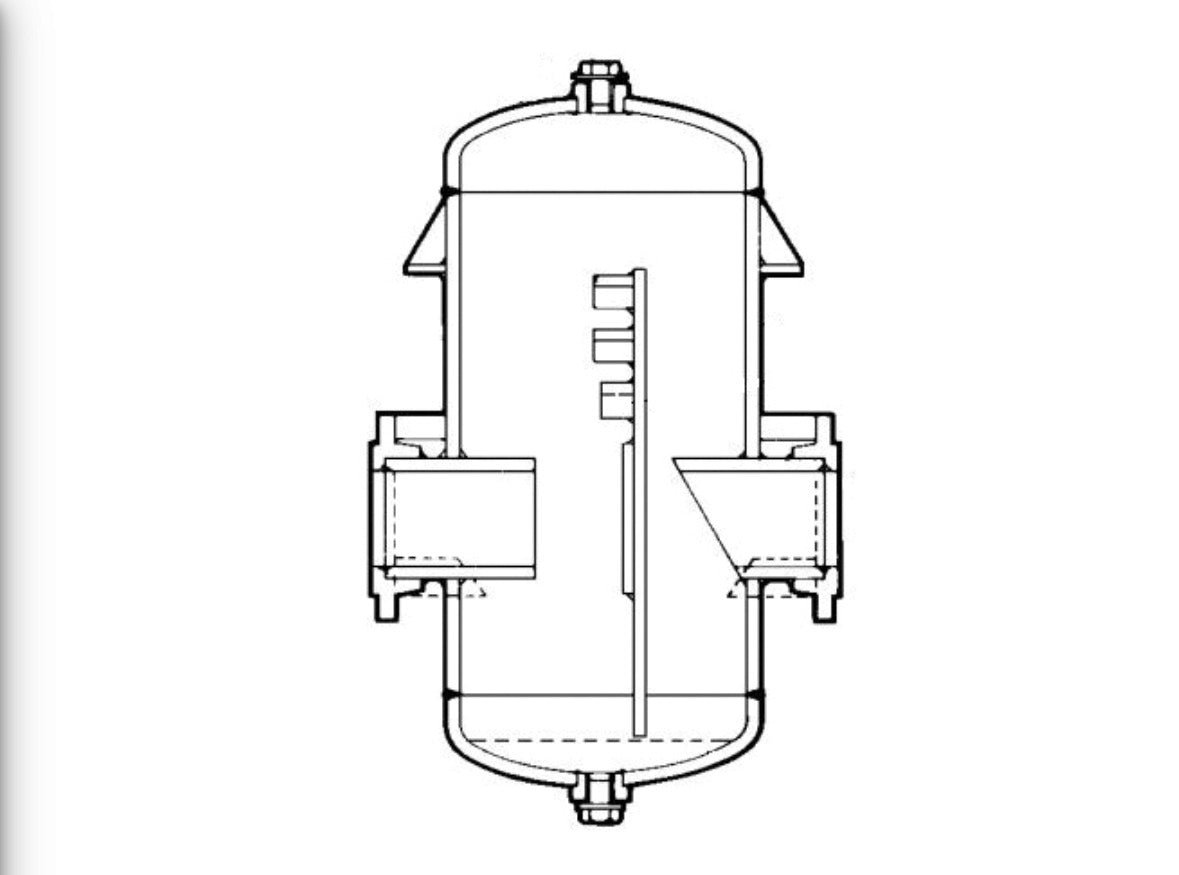

Moisture Separators are used to improve the quality of steam or compressed air either within the distribution system or on the supply inlet to equipment. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a trap.
Brand: Spirax Sarco
Weight: 237 lbs
Nominal Size: 4 in
End Style: ANSI 150 Flange
Pressure Rating: 150 psig
Body Material: Fabricated Steel
Dimensions: 29 in L x 31.2 in H
Manufacturer Name: Spirax-Sarco Inc
Series: S4A
Temperature Rating: -20 to 650 deg F
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A 53 GRB Body
Item Features
- Maximum allowable working pressure: 150 psig
- Maximum allowable working temperature: -20 to 650 deg F
